Software
Reference Architecture

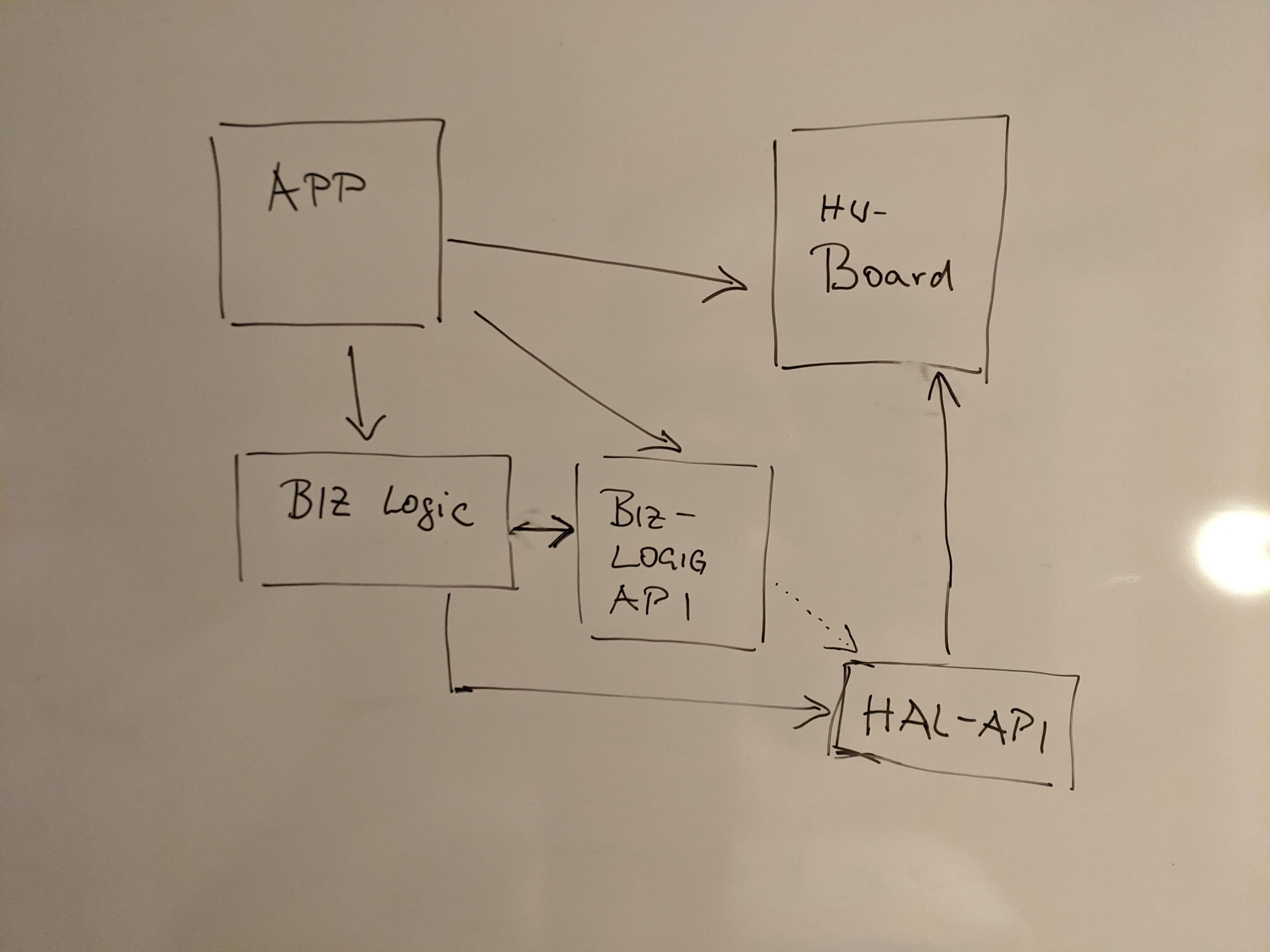

Simple (RTOS free) embedded iot devices can use a reference architecture like
APP
- The application the embedded device is running
- Unit that implements top level of control and behavior
- One application runs at a time
- An application requires certain hardware resource available
Board
- Maps the hardware resources provided by the board into the software
- Implements Embedded HAL Interface for the specific board resources
Embedded HAL Interface
- General hardware abstraction for common types of peripherals
- like GPIO input, output, I2C, SPI, UART, ADC, DAC, CAN, timer
- Is same for all processor architectures and boards
Biz Logic Component
- Provides an certain well-specified business logic
- encapsulated into a reusable component
- It has no dependencies to hardware/board since it is independent upon any specific hardware
- It might require certain hardware, to work with using the Embedded HAL Interface interface exclusively Thus, there is a dependency to the interface, but not to the board
- Business Logic Components might implement some business hardware communication protocol of a chip connected via a standard HAL peripheral, it could be called a driver
Instanced Reference Architecture in Rust
[Draft]
Processor Arch specifics
- target command set
- Interrupt vector priority/ ISR handling (pending)
- critical sections
No OS specifics
- panic handler
- logging
Peripherals
MCU Vendor (SVD file) -> xyz-hal crate embedded-hal dependency
Board
Depending on the requirements to the IOT device
Rust environment for embedded
- embedded book
- defmt for logging
Async processing/ async await
- https://crates.io/crates/nb
Hardware binding
- embedded hal
- memory protection -- ownership, borrowing
